Product Details

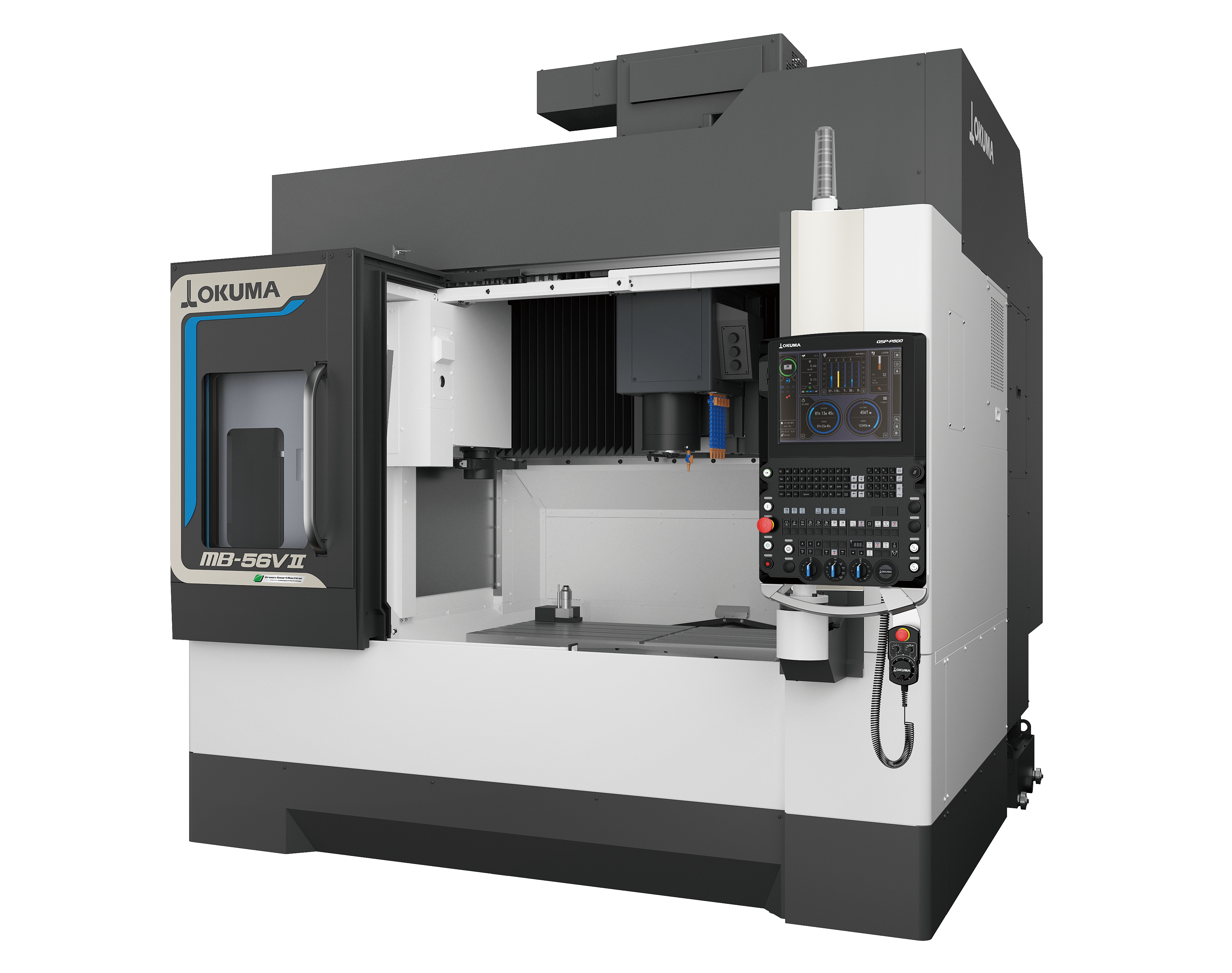

Our MB-56VA adopts a extremely rigid double-column structure to offer the most machining in the least floor space. Okuma’s Thermo-Friendly Concept is standard on this machine for unrivaled dimensional stability over long, continuous runs. This vertical machining center is equipped with a high-speed, high-power 40-taper 8,000 rpm spindle with a 15 hp VAC integral motor and bidirectional spindle cooling. This model incorporates a high-speed 20-position automatic tool changer and 1,574-ipm rapid traverse, resulting in a powerful production capability.
Learn more about Machining Centers.
Highlighted Specs
Max Machining Volume (mm)
1,050 x 560 x 460
Table Size (mm)
1,300 x 560
Spindle Speed (min⁻¹)
50~8,000, 50~15,000, 50~20,000, 50~25,000, 50~35,000
Spindle Motor Power – Low Range (kW)
11/7.52 [2/18.5, 30/22,15/11, 15]
Rapid Traverse (m/min)
X-Y:40 Z:32
Magazine Capacity
20 [32, 48]
Perfect Automation Pairings
This machine tool is compatible with the following automation solutions for increased production, accuracy, and efficiency across your operations.
